应用范围
机械制造、机床设备、自动化生产线移动单元的应用。可接触油污环境使用机械自动化安装工程，适合户外使用。耐腐蚀、酸碱、恶劣环境使用，高速高负载下移动使用场合。

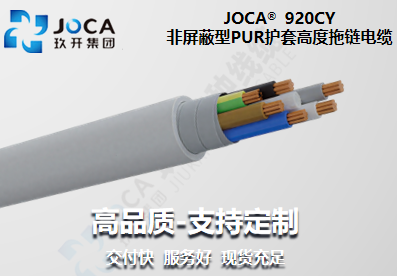

电缆结构
1.导体：精细无氧铜丝，多股绞合导体，符合DIN VDE 0295及IEC 60228中6类导体标准。
2.绝缘：高强度PVC混合物。
3.芯线颜色：颜色区分或数字编号区分，可根据顾客要求定制。
4.护套：PUR
5.常规颜色：黑色、灰色、橙色。
技术参数：
1.额定电压：300/300V、300/500V、450/750V、0.6/1KV
测试电压：1500V、2000V、2500V、3500V
2.最小弯曲半径：
固定安装：6xD
移动安装：8xD
3.移动速度：≤8/s
4.使用寿命：≥2000万次
5.使用温度：
固定安装：-50℃~+105℃
移动安装：-40℃~+90℃
| 型号 | 芯数 × 标称截面 \(mm²\) | 近似外径 mm | 近似重量 \(kg/km\) |
| 920CY | 2×0.14 | 3.9 | 17 |
| 920CY | 3×0.14 | 4.1 | 20 |
| 920CY | 4×0.14 | 4.3 | 23 |
| 920CY | 5×0.14 | 4.9 | 30 |
| 920CY | 6×0.14 | 5.2 | 34 |
| 920CY | 7×0.14 | 5.6 | 40 |
| 920CY | 8×0.14 | 5.9 | 45 |
| 920CY | 9×0.14 | 6.5 | 52 |
| 920CY | 10×0.14 | 6.9 | 62 |
| 920CY | 12×0.14 | 7.8 | 69 |
| 920CY | 14×0.14 | 8.4 | 80 |
| 920CY | 16×0.14 | 8.5 | 83 |
| 920CY | 2×0.2 | 4.1 | 20 |
| 920CY | 3×0.2 | 4.3 | 23 |
| 920CY | 4×0.2 | 4.6 | 27 |
| 920CY | 5×0.2 | 5.1 | 34 |
| 920CY | 6×0.2 | 6.2 | 40 |
| 920CY | 7×0.2 | 6.8 | 46 |
| 920CY | 8×0.2 | 7.3 | 55 |
| 920CY | 9×0.2 | 8.2 | 63 |
| 920CY | 10×0.2 | 8.5 | 71 |
| 920CY | 12×0.2 | 9.5 | 80 |
| 920CY | 14×0.2 | 10.3 | 96 |
| 920CY | 16×0.2 | 10.5 | 101 |
| 920CY | 2×0.25 | 5 | 22 |
| 920CY | 3×0.25 | 5.2 | 25 |
| 920CY | 4×0.25 | 5.6 | 32 |
| 920CY | 5×0.25 | 6 | 38 |
| 920CY | 6×0.25 | 6.7 | 45 |
| 920CY | 7×0.25 | 7.1 | 54 |
| 920CY | 8×0.25 | 7.9 | 60 |
| 920CY | 9×0.25 | 8.6 | 73 |
| 920CY | 10×0.25 | 7.9 | 84 |
| 920CY | 12×0.25 | 8.8 | 94 |
| 920CY | 14×0.25 | 9.2 | 108 |
| 920CY | 16×0.25 | 9.5 | 114 |
| 920CY | 2×0.3 | 4.4 | 23 |
| 920CY | 3×0.3 | 4.8 | 30 |
| 920CY | 4×0.3 | 5.1 | 35 |
| 920CY | 5×0.3 | 5.5 | 42 |
| 920CY | 6×0.3 | 6 | 52 |
| 920CY | 7×0.3 | 6.5 | 60 |
| 920CY | 8×0.3 | 6.9 | 68 |
| 920CY | 9×0.3 | 7.5 | 80 |
| 920CY | 10×0.3 | 8 | 91 |
| 920CY | 12×0.3 | 9.1 | 99 |
| 920CY | 14×0.3 | 9.8 | 120 |
| 920CY | 16×0.3 | 10.1 | 130 |
| 920CY | 2×0.34 | 4.4 | 23 |
| 920CY | 3×0.34 | 4.8 | 31 |
| 920CY | 4×0.34 | 5.1 | 36 |
| 920CY | 5×0.34 | 5.5 | 44 |
| 920CY | 6×0.34 | 6 | 54 |
| 920CY | 7×0.34 | 6.5 | 63 |
| 920CY | 8×0.34 | 6.9 | 71 |
| 920CY | 9×0.34 | 7.5 | 83 |
| 920CY | 10×0.34 | 8 | 95 |
| 920CY | 12×0.34 | 9.1 | 103 |
| 920CY | 14×0.34 | 9.8 | 125 |
| 920CY | 16×0.34 | 10.1 | 136 |
| 920CY | 2×0.4 | 5.2 | 33 |
| 920CY | 3×0.4 | 5.5 | 39 |
| 920CY | 4×0.4 | 5.9 | 46 |
| 920CY | 5×0.4 | 6.3 | 55 |
| 920CY | 6×0.4 | 7 | 68 |
| 920CY | 7×0.4 | 7.6 | 78 |
| 920CY | 8×0.4 | 8.3 | 93 |
| 920CY | 9×0.4 | 8.8 | 105 |
| 920CY | 10×0.4 | 9.4 | 119 |
| 920CY | 12×0.4 | 10.7 | 133 |
| 920CY | 14×0.4 | 11.5 | 160 |
| 920CY | 16×0.4 | 11.9 | 170 |
| 920CY | 2×0.5 | 5.9 | 42 |
| 920CY | 3×0.5 | 6.1 | 49 |
| 920CY | 4×0.5 | 6.8 | 61 |
| 920CY | 5×0.5 | 7.3 | 74 |
| 920CY | 6×0.5 | 8.1 | 90 |
| 920CY | 7×0.5 | 8.7 | 104 |
| 920CY | 8×0.5 | 9.3 | 118 |
| 920CY | 9×0.5 | 10.2 | 138 |
| 920CY | 10×0.5 | 11.1 | 158 |
| 920CY | 12×0.5 | 12.3 | 180 |
| 920CY | 14×0.5 | 13.6 | 212 |
| 920CY | 16×0.5 | 13.9 | 223 |
| 920CY | 2×0.75 | 6.2 | 53 |
| 920CY | 3×0.75 | 6.7 | 63 |
| 920CY | 4×0.75 | 7.2 | 77 |
| 920CY | 5×0.75 | 8 | 95 |
| 920CY | 6×0.75 | 8.7 | 112 |
| 920CY | 7×0.75 | 9.5 | 134 |
| 920CY | 8×0.75 | 10.3 | 153 |
| 920CY | 9×0.75 | 11.5 | 180 |
| 920CY | 10×0.75 | 12.2 | 205 |
| 920CY | 12×0.75 | 13.3 | 232 |
| 920CY | 14×0.75 | 14.7 | 276 |
| 920CY | 16×0.75 | 15.2 | 293 |
| 920CY | 2×1.0 | 6.8 | 67 |
| 920CY | 3×1.0 | 7.1 | 79 |
| 920CY | 4×1.0 | 7.9 | 100 |
| 920CY | 5×1.0 | 8.6 | 120 |
| 920CY | 6×1.0 | 9.5 | 146 |
| 920CY | 7×1.0 | 10.1 | 169 |
| 920CY | 8×1.0 | 11.3 | 198 |
| 920CY | 9×1.0 | 12.5 | 233 |
| 920CY | 10×1.0 | 13.1 | 266 |
| 920CY | 2×1.5 | 8 | 93 |
| 920CY | 3×1.5 | 8.4 | 115 |
| 920CY | 4×1.5 | 9.3 | 145 |
| 920CY | 5×1.5 | 10.1 | 177 |
| 920CY | 6×1.5 | 11.2 | 208 |
| 920CY | 7×1.5 | 11.2 | 247 |
| 920CY | 8×1.5 | 13.3 | 288 |
| 920CY | 9×1.5 | 14.8 | 326 |
| 920CY | 10×1.5 | 15.7 | 375 |
| 920CY | 2×2.5 | 9.8 | 150 |
| 920CY | 3×2.5 | 10.3 | 192 |
| 920CY | 4×2.5 | 11.4 | 241 |
| 920CY | 5×2.5 | 12.7 | 293 |
| 920CY | 6×2.5 | 14 | 351 |
| 920CY | 7×2.5 | 15.2 | 398 |
| 920CY | 8×2.5 | 16.9 | 473 |
| 920CY | 9×2.5 | 18.7 | 545 |
| 920CY | 10×2.5 | 19.8 | 624 |
| 920CY | 2×4.0 | 11.6 | 202 |
| 920CY | 3×4.0 | 12.4 | 262 |
| 920CY | 4×4.0 | 13.8 | 329 |
| 920CY | 5×4.0 | 15.2 | 401 |
| 920CY | 6×4.0 | 16.8 | 480 |
